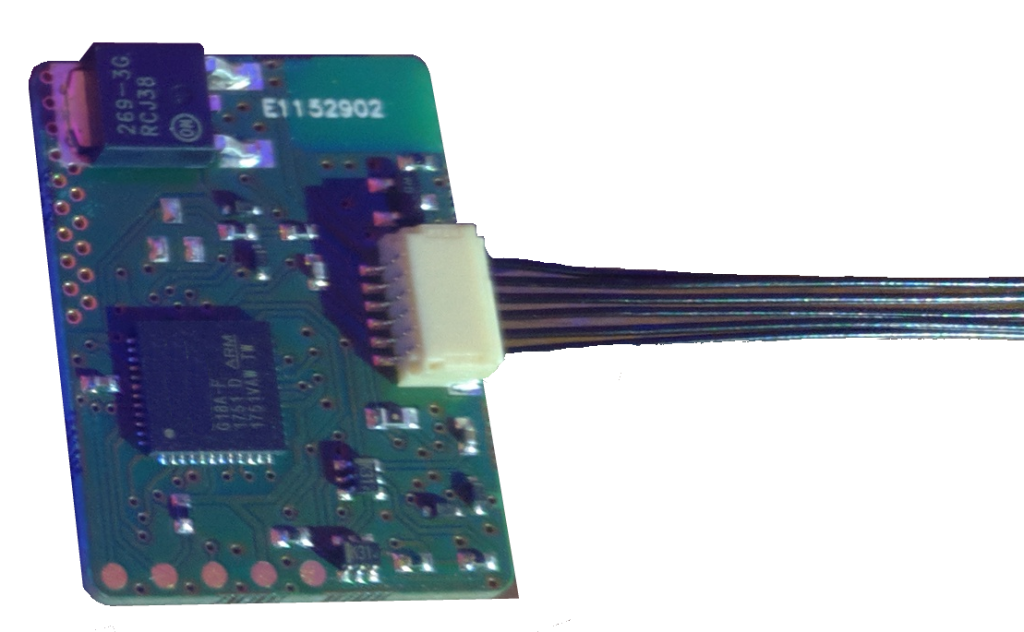

Translate different LIN version so older and newer can talk to each-other. This causes the Audi R8 / TTRS steering wheel to work on almost all VW cars. For each platform it’s the same module but it’s shipped with different firmware. Visit our compatibility page or ask through email if your car is supported. Buttons which can’t be translated (f.e. start/stop, drive select, …) are send wireless through a proprietary secured protocol to the CAN module. We delivered the hardware in a protective sealing and with wire-harness included for Plug&Play installation. Dimensions: 22mm x 30mm x 5mm.

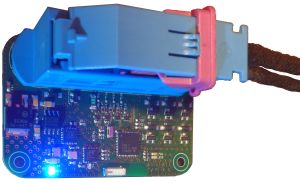

Commands received by the LIN module will be translated to the CAN-bus with this module. It has one 500kbps CAN-bus transceiver, 6 outputs and 2 inputs. The module is delivered in a protective sealing and with wire-harness included for Plug&Play installation.
Re-pinning the airbag harness is not an easy task. With these tools the job will be done in under 5 minutes.

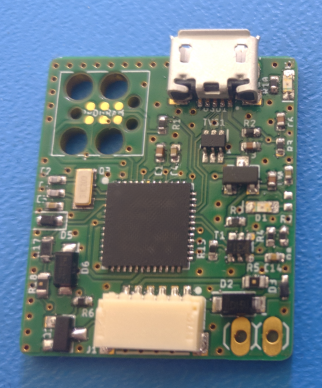

We developed our own LIN analyzer because the one of Microchip had some shortcomings. It supports both Slave and Master mode, is connected to the PC through micro USB and comes in a protective enclosure. The tool works on Windows and Linux. Please fill in the contact form for pricing and software.
